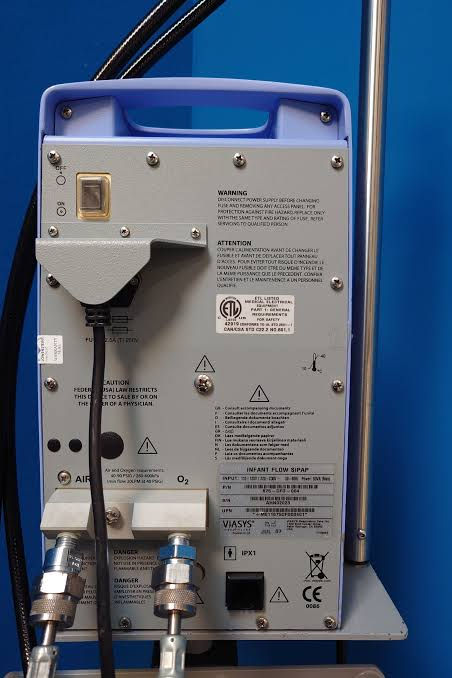

The CareFusion Infant Flow SiPAP is a non-invasive respiratory support system for newborns and infants , particularly in neonatal and pediatric resuscitation and intensive care. It delivers continuous positive airway pressure ( nCPAP /CNPP ) and biphasic respiratory support to assist spontaneous breathing and improve respiratory function in newborns.
 The device features an LCD touchscreen for adjusting and monitoring respiratory parameters, displaying pressure curves and integrating various monitoring and alarm functions. Depending on its configuration, it can also offer a patient-triggered biphasic mode with emergency ventilation in case of apnea .
 Main features


 Type: Neonatal non-invasive respiratory support system

 Population: newborns and infants

 Use: neonatal and pediatric resuscitation and intensive care

 Available modes:



 nCPAP / PPCN

 nCPAP with respiratory rate monitoring

 Time-triggered biphasic

 BiPhasic with respiratory rate monitoring

 BiPhasic triggered by the patient with backup ventilation in case of apnea, according to configuration


 nCPAP pressure: up to 11 cmH₂O

 Patient-triggered BiPhasic mode: up to 15 cmH₂O

 T-High time: 0.1 to 3 seconds

 Cycle frequency: up to 120 cycles/min depending on configuration

 Adjustable FiO₂: 21 to 100%

 nCPAP flow rate / low pressure: 0 to 15 L/min

 High pressure flow rate: 0 to 5 L/min

 Monitoring: CPAP/PEEP, mean pressure, maximum inspiratory pressure, FiO₂, I/E ratio, spontaneous respiratory rate, and battery level

 Alarms: high/low pressure, overpressure, high/low FiO₂, low breathing rate, low battery, and gas supply fault

 Screen: LCD touchscreen with pressure/time curve display

 Power supply: 100–230 V AC, 50/60 Hz

 Battery life: up to approximately 2 hours

 Pneumatic supply: medical air and oxygen

 Control module dimensions: approximately 26 × 38 × 23.5 cm

 Module weight: approximately 8.8 kg

 Operating temperature: 5 to 40 °C

 The system uses an Infant Flow variable flow generator coupled with a patient circuit and a nasal interface adapted for newborns. This technology is designed to provide stable CPAP pressure while minimizing the work of breathing required from the patient.
 CE Medical. Supplied without connecting hoses and accessories.
 Used medical device.
